Harley Davidson Adjustable Brake Lever LEV-B260

£96.49
(Inc. 20% VAT)
(£80.41 Exc. VAT)
+
Description

OEM Part Numbers: 41700008(Black) and 41700008(Silver)

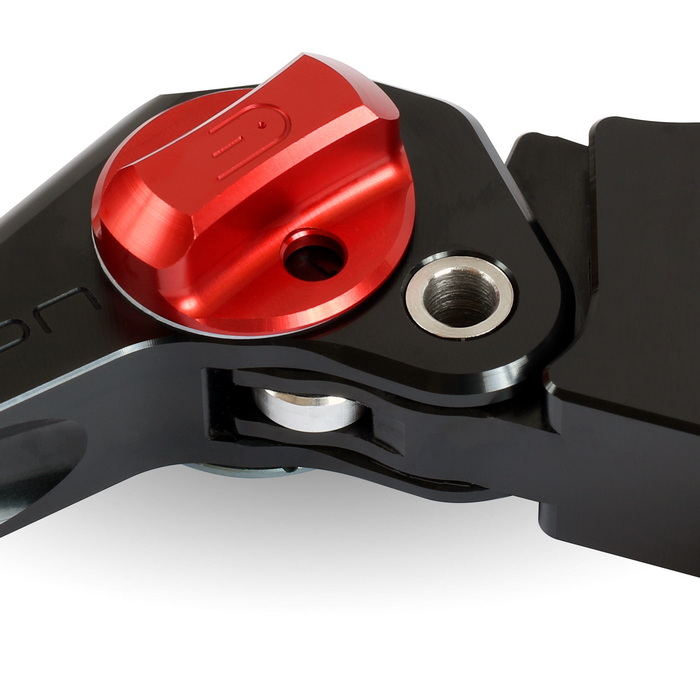

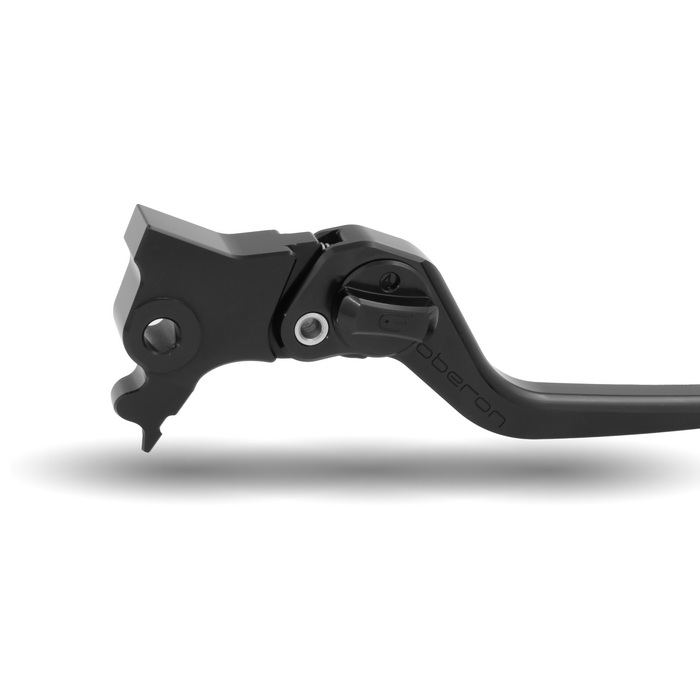

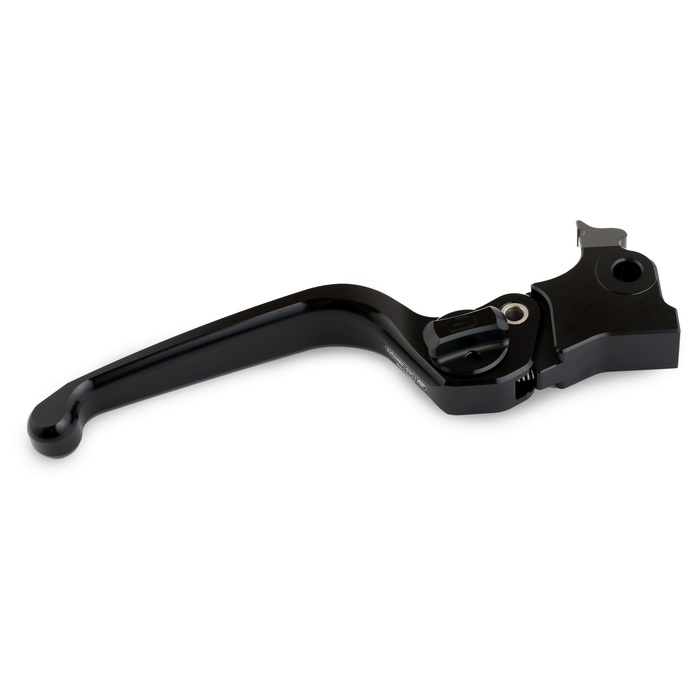

Harley Davidson adjustable motorcycle levers by Oberon Performance. Adjustment is achieved with fingertip control in either adjuster direction. The eight adjustments are either side of position 4 (similar to stock) giving adjustment up to 30mm (1 1/8") of lever travel. Our unique RADIAL CAM ® design achieves this extraordinary range with ease. This is mainly due to both the close tolerance design and the high precision quality roller, around which the cam operates locating each position with a comforting 'click'. Each lever is despatched fully assembled in the style and colour of your choice ready for use. Oberon Performance supplies a full specification sheet including part numbers with all levers. The cams in the levers have been hard anodised for longevity and reliability, sufficiently lubricated on assembly for smooth adjustment transition. Available in 3 styles, Standard, AirO and Custom.
Kit also includes 1 off 8mm circlip and 1 off 10mm circlip.

Due to its inherent danger, this is a non-serviceable product unless it is returned to the factory here in the UK.

Please note: All lever fittings (The connector part of the assembly) are available in black anodising only.

For all CVO models, please contact us first before ordering.



Specifications
Adjustable Positions8
Adjustment Range30mm
AlloyAluminium 6000 series

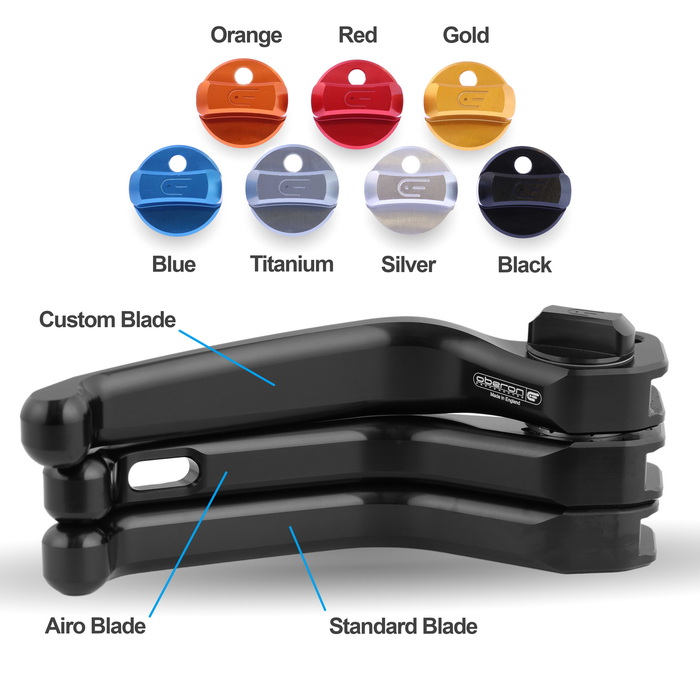

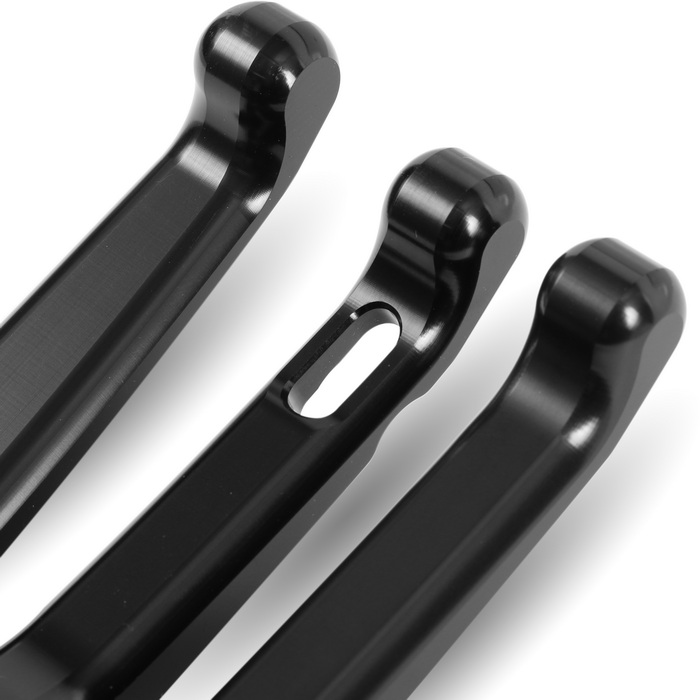

Blade StylesCustom | Airo | Standard
Blade ColoursBlack | Blue | Gold | Orange | Red | Silver | Titanium
Switch ColoursBlack | Blue | Gold | Orange | Red | Silver | Titanium
FastenersStainless Steel
Hardware1 off 8mm circlip and 1 off 10mm circlip included in kit.
Pack Quantity1
Model Fitment
ManufactureModelYear
Harley DavidsonXL1200C CUSTOM2014 - 2017
Harley DavidsonXL1200CA CUSTOM LIMITED A2014 - 2016
Harley DavidsonXL1200CB CUSTOM LIMITED B2014 - 2017
Harley DavidsonXL1200CP CUSTOM CP2014 - 2016
Harley DavidsonXL1200CX ROADSTER2017 - 2020
Harley DavidsonXL1200NS IRON2019 - 2018
Harley DavidsonXL1200T SUPER LOW 1200T2014 - 2020
Harley DavidsonXL1200V SEVENTY-TWO2014 - 2016
Harley DavidsonXL1200X FORTY-EIGHT2014 - 2022
Harley DavidsonXL1200X FORTY-EIGHT ANNIVERSARY2018 - 2018
Harley DavidsonXL1200XS FORTY-EIGHT SPECIAL2019 - 2020
Harley DavidsonXL883L SUPER LOW2014 - 2019
Harley DavidsonXL883N IRON2014 - 2022
Harley DavidsonXL883R ROADSTER2014 - 2015
