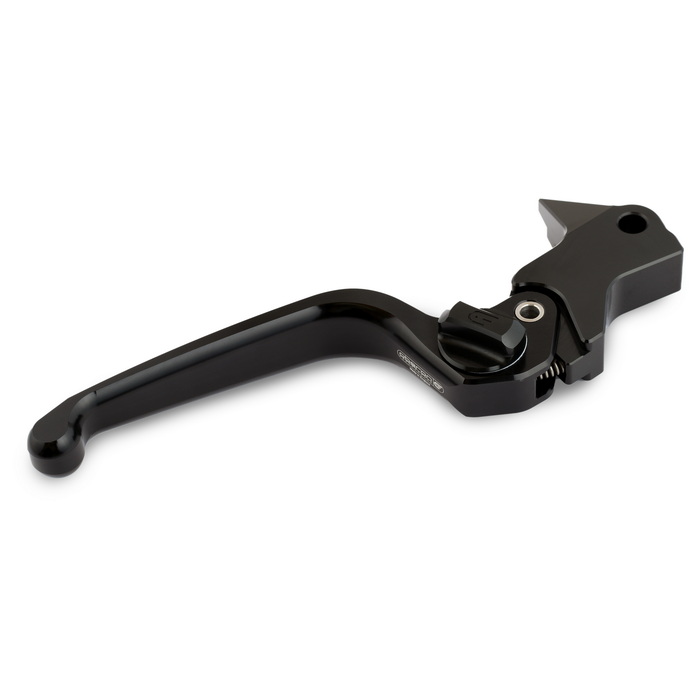

Harley Davidson Adjustable Brake Lever LEV-B100

£96.49
(Inc. 20% VAT)
(£80.41 Exc. VAT)
+
Description

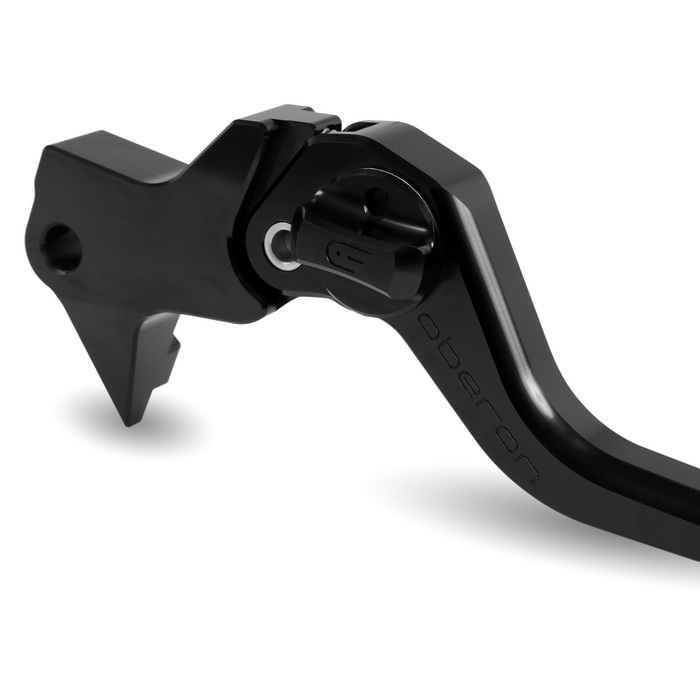

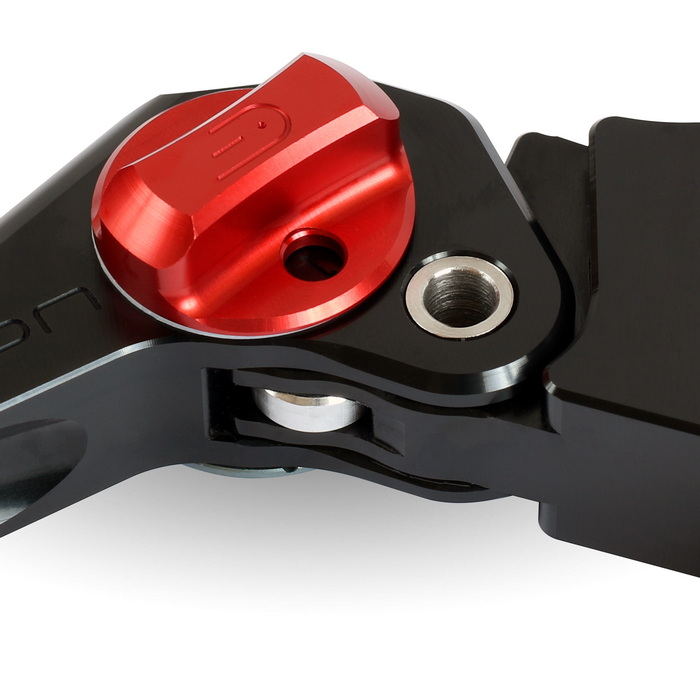

Harley Davidson adjustable motorcycle levers by Oberon Performance. Adjustment is achieved with fingertip control in either adjuster direction. The eight adjustments are either side of position 4 (similar to stock) giving adjustment up to 30mm (1 1/8") of lever travel. Our unique RADIAL CAM ® design achieves this extraordinary range with ease. This is mainly due to both the close tolerance design and the high precision quality roller, around which the cam operates locating each position with a comforting 'click'. Each lever is despatched fully assembled in the style and colour of your choice ready for use. Oberon Performance supplies a full specification sheet including part numbers with all levers. The cams in the levers have been hard anodised for longevity and reliability, sufficiently lubricated on assembly for smooth adjustment transition. Available in 3 styles, Standard, AirO and Custom.
Kit also includes 1 off 8mm circlip and 1 off 10mm circlip.

Due to its inherent danger, this is a non-serviceable product unless it is returned to the factory here in the UK.

Please note: All lever fittings (The connector part of the assembly) are available in black anodising only.

For all CVO models, please contact us first before ordering.

Specifications
Adjustable Positions8
Adjustment Range30mm
AlloyAluminium 6000 series

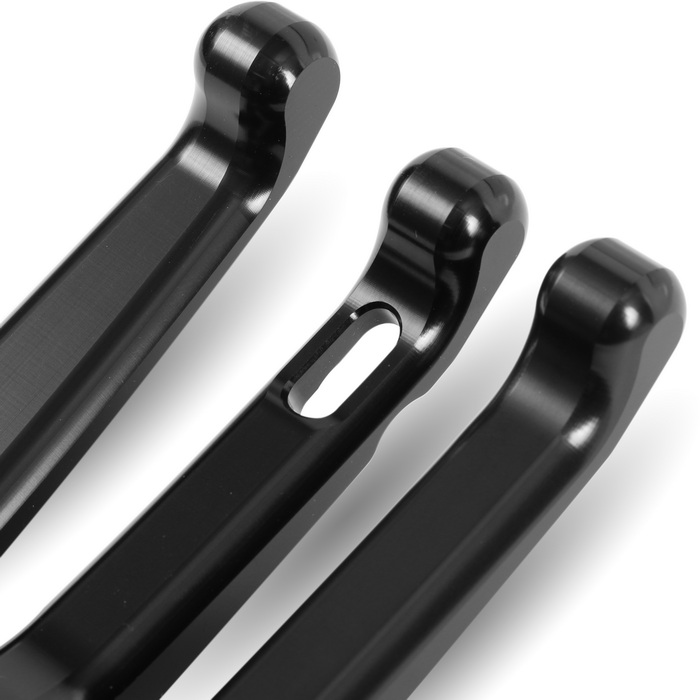

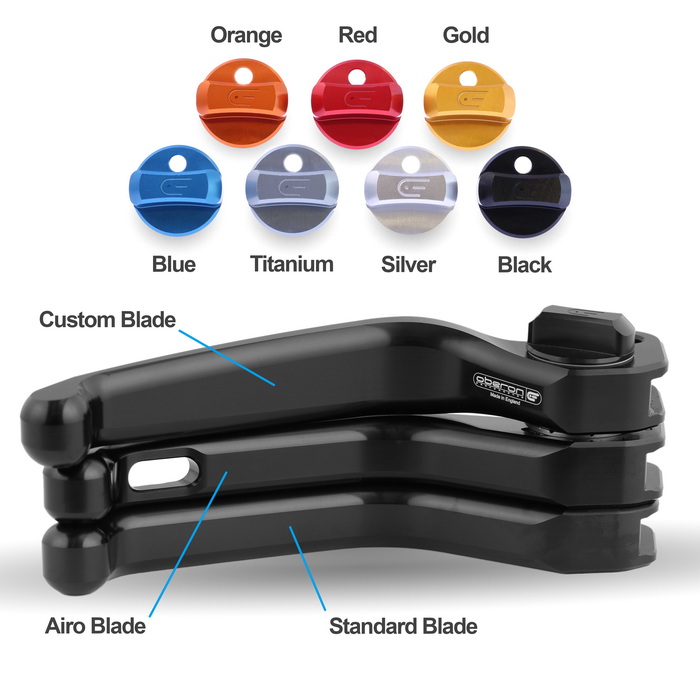

Blade StylesCustom | Airo | Standard
Blade ColoursBlack | Blue | Gold | Orange | Red | Silver | Titanium
Switch ColoursBlack | Blue | Gold | Orange | Red | Silver | Titanium
FastenersStainless Steel
Hardware1 off 8mm circlip and 1 off 10mm circlip included in kit.
Pack Quantity1
Model Fitment
ManufactureModelYear
Harley DavidsonXL1200C CUSTOM2004 - 2011
Harley DavidsonXL1200C CUSTOM ANNIVERSARY2013 - 2013
Harley DavidsonXL1200CA CUSTOM LIMITED A2013 - 2013
Harley DavidsonXL1200CB CUSTOM LIMITED B2013 - 2013
Harley DavidsonXL1200CP CUSTOM CP2011 - 2013
Harley DavidsonXL1200L LOW2006 - 2011
Harley DavidsonXL1200N NIGHTSTER2007 - 2011
Harley DavidsonXL1200R ROADSTER2004 - 2008
Harley DavidsonXL1200V SEVENTY-TWO2012 - 2013
Harley DavidsonXL1200X FORTY-EIGHT2010 - 2013
Harley DavidsonXL50 50TH ANNIVERSARY2007 - 2007
Harley DavidsonXL883 8832004 - 2009
Harley DavidsonXL883C CUSTOM2004 - 2009
Harley DavidsonXL883L LOW2005 - 2010
Harley DavidsonXL883L SUPER LOW2011 - 2013
Harley DavidsonXL883N IRON2009 - 2013
Harley DavidsonXL883R ROADSTER2005 - 2013
Harley DavidsonXR12002009 - 2010
Harley DavidsonXR1200X2011 - 2013
