Adjustable Mirror

£80.49
(Inc. 20% VAT)
(£67.08 Exc. VAT)
+
Description

Click here for latest Adaptor Information  or look in the Technical/Adaptor tabs above.



Adjustable bar end mirror

CNC machined from 6000 series billet aluminium and designed to provide the sleekest look. The mirror can fold through 220 degrees which tucks the mirror in past the bar end for those  arrow gaps. Adjustments can be made easily.

The mirror lens is first surface chrome glass and automotive standard convex (Mirror glass has a spherical radius of 1260mm) giving superb visibility and weather resistance. The finish is a high quality anodise that leaves a silky sheen that will retain its looks years after life on the road.

The adjustable bar end mirror is more than just a mirror, it is a bar end weight solution too. The combined weight of the bar end mirror easily surpasses any OEM bar end weight giving total peace of mind. And, due to the unique Oberon Performance design of collet fittings, the mirror will feel 'welded' to the handlebar as the collet will be forced to be bigger than the dimension it sits in.

Specifications
Alloy Aluminium 6000 series
Colours Black Silver

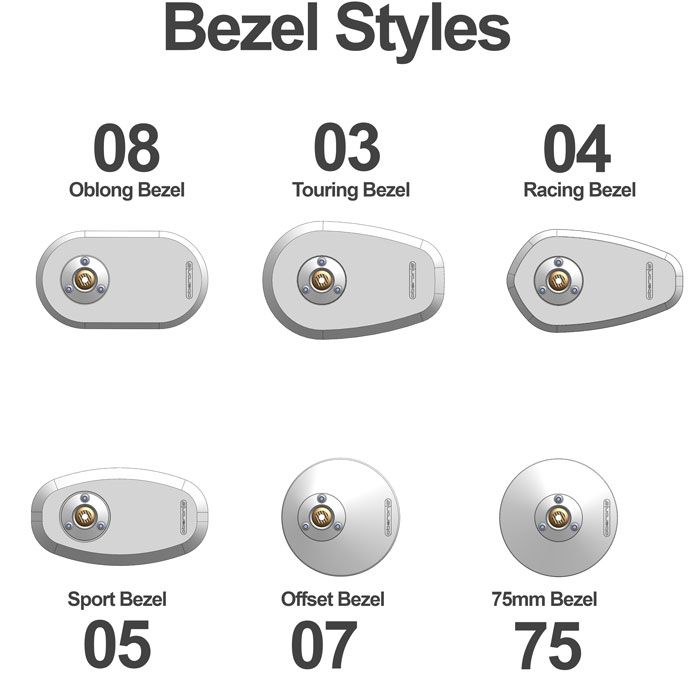

Bezel Round Ø75mm
Bezel Offset Ø75mm - 20mm Max Offset
Bezel Oblong 109mm long x 62mm wide
Bezel Racing 111.5mm long x 65.5mm wide
Bezel Sport 112mm long x 62mm wide
Bezel Touring 115mm long x 75mm wide
Available Collets Ø12-14mm, Ø17mm, Ø18mm, Ø19mm and Ø22mm
Fasteners Stainless Steel
Glass mirror R1260mm
Pack Quantity 1
Weight Round 182g
Weight Offset 177g
Weight Oblong 215g
Weight Racing 230g
Weight Sport 230g
Weight Touring 230g
Documents

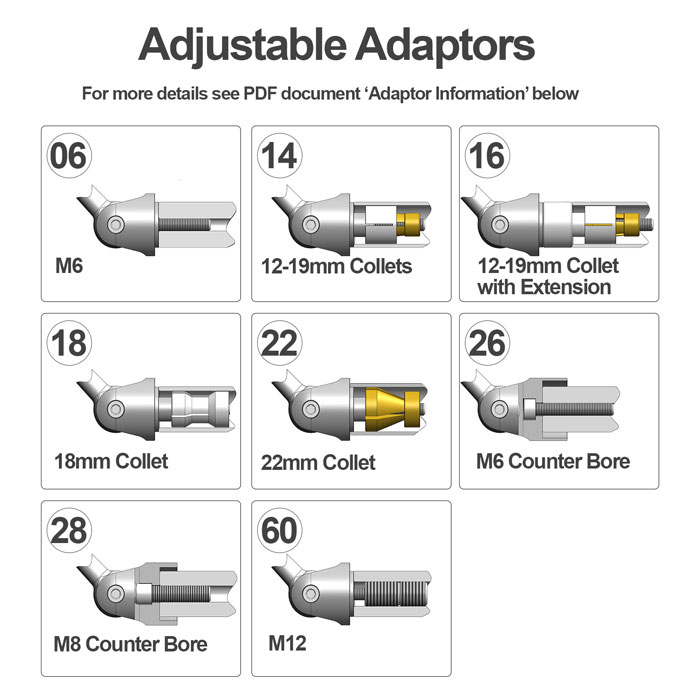

Adaptor

ManufactureModelYearAdaptor
BMWK 1200 GT (K44)2005-200828
BMWK 1200 R (K43)2004-200828
BMWK 1200 R SPORT (K43)2006-200728
BMWK 1200 S (K40)2004-200828
BMWK 1300 GT (K44)2008-201028
BMWK 1300 R (K43)2008-201128
BMWK 1300 S (K40)2008-201528
BMWR 1200 R (K27)2006-201428
BMWR 1200 RS (K54)2014-201828
BMWR 1200 RT (K26)2005-201328
BMWR 1200 RT (K52)2013-201828
BMWR 1200 S (K29)2005-200628
BMWR 1250 RS (K54)2018-202428
BMWR 1250 RT (K52)2018-202428
BMWR nineT (K21)2013-202360
BMWR nineT Pure (K22)2015-202360
BMWR nineT Racer (K32)2015-202060
BMWR nineT Scrambler (K23)2015-202360
BMWR nineT Urban G/S (K33)2016-202360
BMWS 1000 R (K47)2013-202060
BMWS 1000 RR (K46)2009-201860
Kawasaki1400GTR2008-201628
KawasakiER-6f-n2006-201628
KawasakiGPZ11001995-199728
KawasakiGTR10001994-200628
KawasakiVersys 10002011-201828
KawasakiVersys 6502007-202428
KawasakiZ10002003-202028
KawasakiZ1000R2018-202028
KawasakiZ1000SX2011-201928
KawasakiZ7502004-201328
KawasakiZ750R2011-201328
KawasakiZ8002013-201628
KawasakiZ9002017-202428
KawasakiZ900 Performance2021-202328
KawasakiZ900 SE2022-202428
KawasakiZ900RS2018-202428
KawasakiZ900RS CAFÉ2019-202028
KawasakiZ900RS SE2022-202428
KawasakiZRX-11001997-200028
KawasakiZRX-12002001-200428
KawasakiZRX-1200R2001-200628
KawasakiZX-10R2010-202028
KawasakiZX-10R SE2018-202028
KawasakiZX-10RR2017-201928
KawasakiZX-142006-201128
KawasakiZX-14R ZZR14002012-202128
KawasakiZX-14R ZZR1400 Performance2016-201928
KawasakiZX-14R ZZR1400 Performance Sport2016-202028
KawasakiZX-6R1995-202128
KawasakiZX-6RR2003-200628
KawasakiZX-7R1996-200328
KawasakiZX-7RR1996-199728
KawasakiZX-9R1994-200328
KawasakiZXR7501989-199528
KawasakiZXR750R1991-199428
KawasakiZZR11001990-200128
KawasakiZZR12002002-200528
KawasakiZZR6001990-200728
TriumphAmerica2003-201606
TriumphBonneville2000-201506
TriumphBonneville SE2009-201306
TriumphBonneville T1002002-201606
TriumphScrambler2006-201606
TriumphSpeedmaster2002-201706
TriumphThruxton2003-201506
YamahaMT-072014-202416
YamahaMT-092014-202016
YamahaMT-09 SP2018-202016
YamahaMT-102016-202416
YamahaMT-10 SP2018-202416
YamahaMT-1252018-201916
YamahaXSR7002016-202116
YamahaXSR9002016-202116
